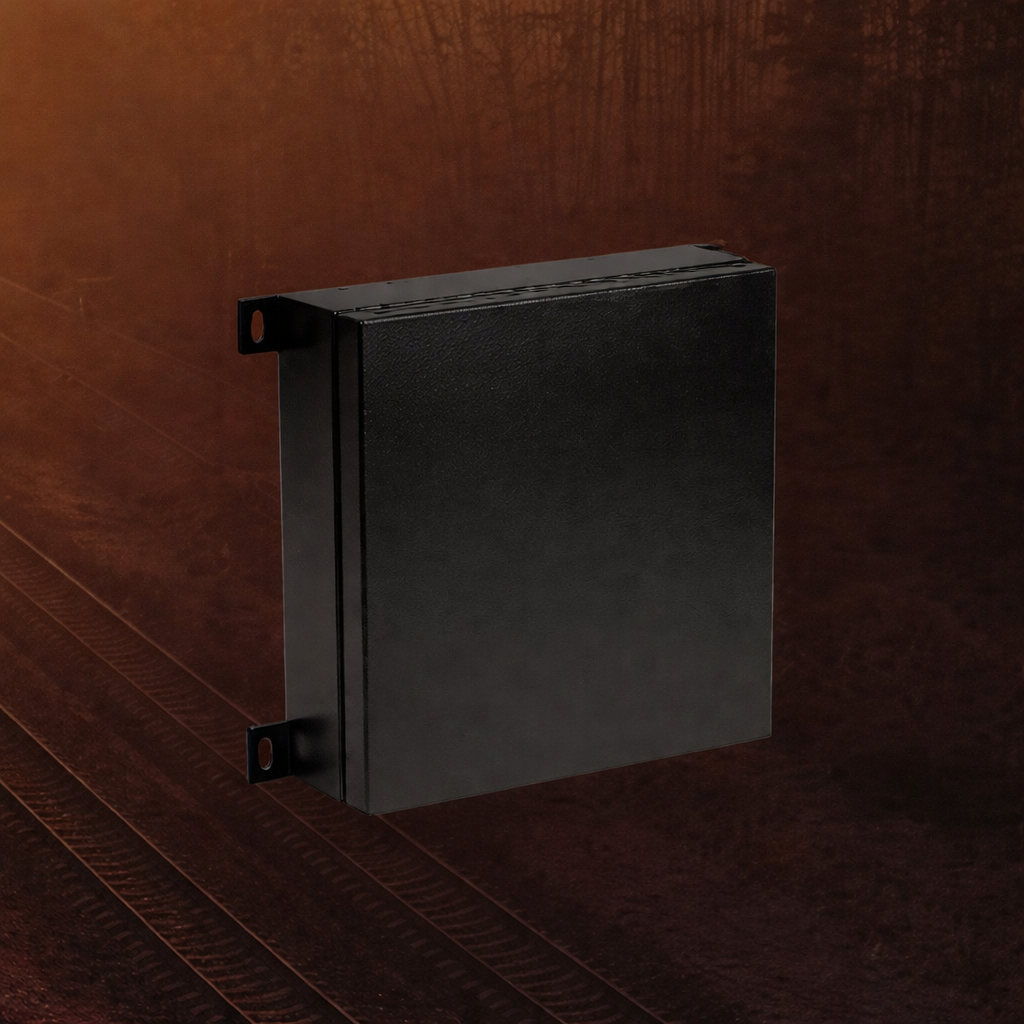

WAYSIDE AEI

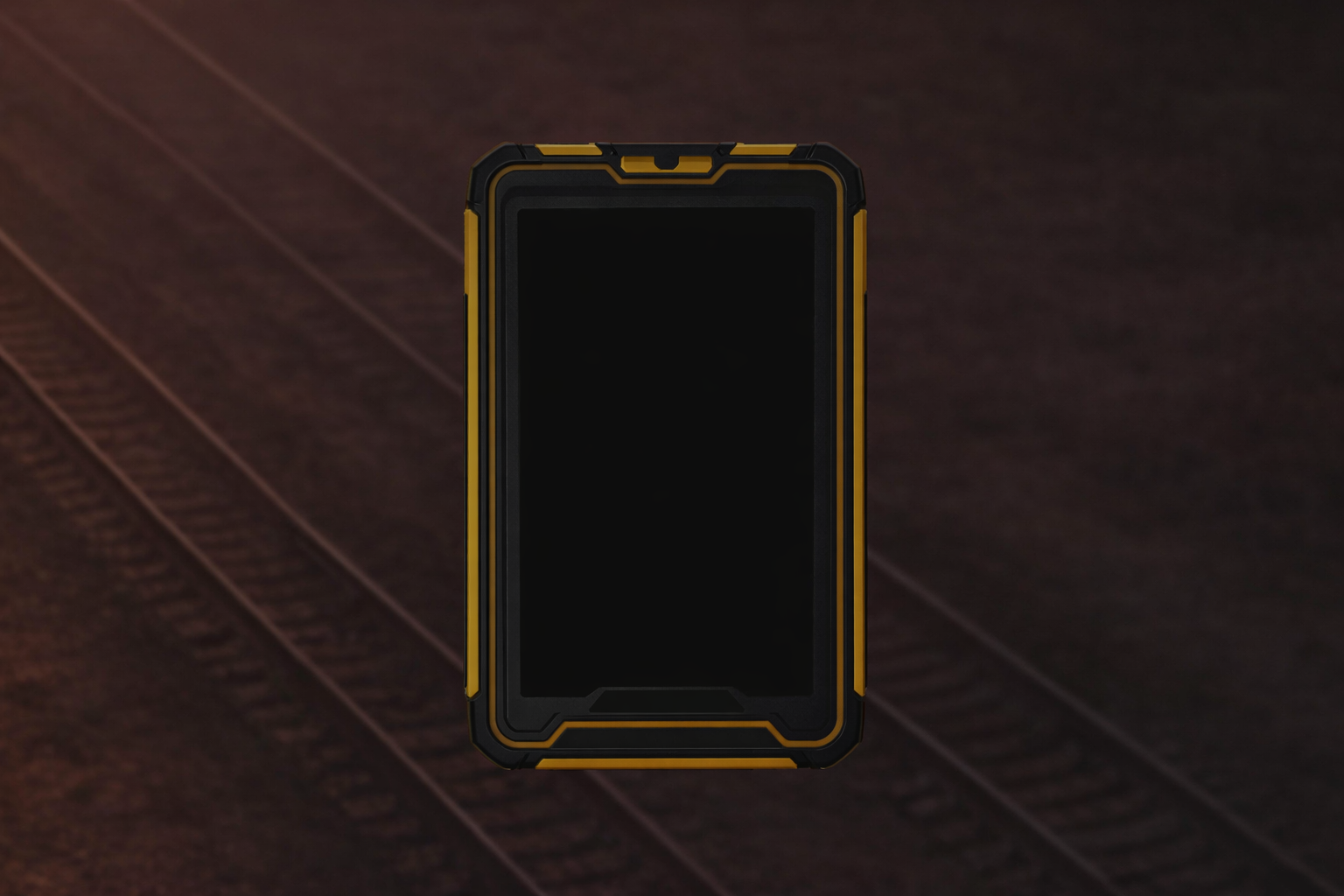

HANDHELD AEI
SOLAR WAYSIDE
Product Comparison
Solutions for your railyard and beyond
AEI
SOLAR
CELLULAR
WIFI
HANDHELD
ZION
ASPEN
Meet Your New Assistants
ZION
Perfect for: Shippers,
Railcar repair, and third party switchers
ASPEN
Able to take photos for: Shippers Railcar Repair third party switchers.
Want to discuss your specific requirements?
Want to discuss your specific requirements?
Start your conversation easily.
Connect with us now!
Product Highlights

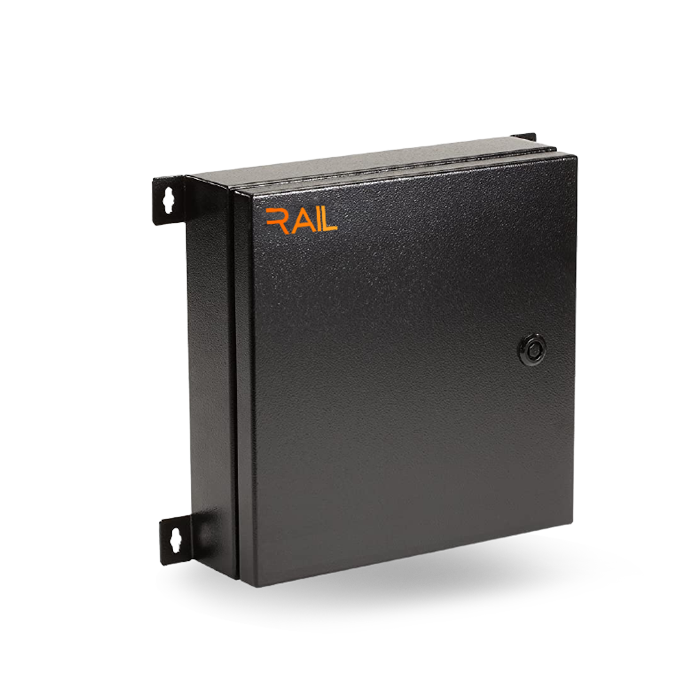

STATIONARY AEI READER FOR RAILCARS
The Denali consists of a AEI Reader with two antennas, a cellular modem and a presence detector. All processing of data is performed by a central AEI Reader Server, which retrieves the raw AEI tag and sensor data, creates a train consist and distributes this data securely to the cloud.
With this equipment you can feel confident knowing when cars pass, even at speeds up to 40 mph. Integrating a Denali AEI Reader into your railyard, will significantly reduce your demurrage costs, resulting in a quick ROI.
Can be equipped with a solar option, that will make the Denali AEI Reader completely wireless.
Developed for industrial rail shippers and short line railroads looking for an economical means to automatically identify rail cars on low speed tracks (less than 40 miles per hour) or at a yard entrance.
Key Features
Fixed AEI Reader with solar power option
Cellular option is available
Reading speeds to 40 MPH
Quick ROI especially with demurrage issues
The Denali reads railroad transportation tags AT5110, AT5118, AT5125, AT5133, AT5510, AT5541 and AT5549.
It has both a USB and Ethernet LAN interface. Up to six devices can simultaneously make a network connection and receive AEI tag data.
Fully rugged solution built to work in the harsh enviroments (enclosure IP66)
The Denali reader can connect two antennas. A single reader can read tags on both sides of a rail vehicle.
The Denali reader has two digital inputs and two digital outputs.
Custom build options are available.
Product Highlights

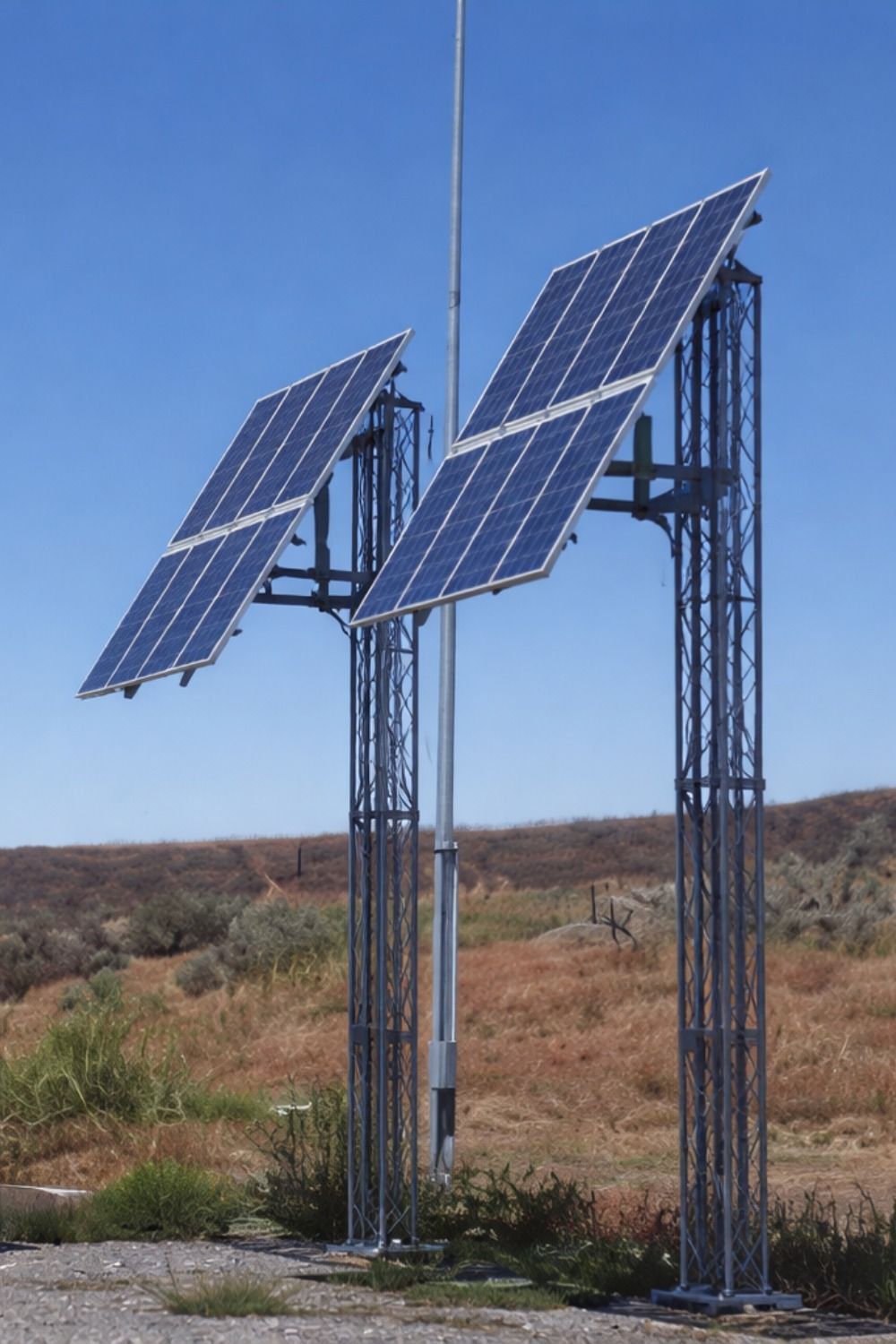

SOLAR-EQUIPPED WAYSIDE AEI READER
No electrician is needed, great for remote locations, environmentally friendly. The savings of solar is at your fingertips.
Transform your operation with a completely
Wireless powerful wayside AEI reader powered by solar.

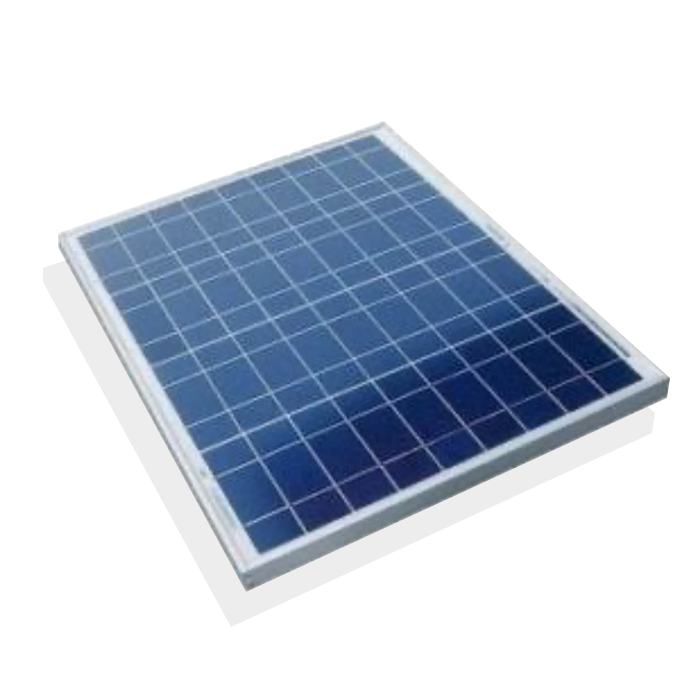

Constructed with high efficient polycrystalline solar cells to produce a higher output per module than others in its class. Installing solar over traditional electrical power can save you up to $10,000 in installation cost and at least $600 a year.
Cut back on installation cost, solar has you up and running in no time.
Key Features
Fixed AEI Reader with solar power option
Cellular option is available
Reading speeds to 40 MPH
Quick ROI especially with demurrage issues
The Solar reads railroad transportation tags AT5110, AT5118, AT5125, AT5133, AT5510, AT5541 and AT5549.
It has both a USB and Ethernet LAN interface. Up to six devices can simultaneously make a network connection and receive AEI tag data.
Fully rugged solution built to work in the harsh enviroments (enclosure IP66)
The Solar reader can connect two antennas. A single reader can read tags on both sides of a rail vehicle.
The Solar reader has two digital inputs and two digital outputs.
Custom build options are available.
Class 1, Division 2, (C1D2) Group A, B, C and D
Up to 256 days onboard data logging
Pre-wired, fully assembled, QC tested
Two (2) load connections
Separated breakers for the array, battery and load
